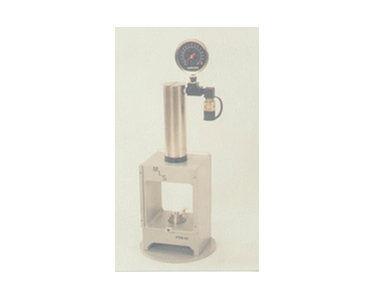

PIR-15 Hydraulic Press Unit

Supplier: Elm Scientific

The PIR-15 and PXR-25 have taken the pain out of pressing infra red and XRF sample disks.

The hydraulic ram operates from standard laboratory air supply via foot actuated pneumatic / hydraulic converter.

The long 6" stroke eliminates the need for preliminary tensioning of the die. The unit is very compact- saving on valuable bench space.

15 tonne hydraulic ram with 6" stroke (25 for PXR-25)
15 tonne analog pressure gauge (25 for PXR-25)
Foot actuated pneumatic / hydraulic converter
Air and hydraulic hoses and connectors

If you are tired of using a manual unit, which leaks all over the place, or if your operators are too exhausted by the number of jobs they have to do, then this is the simple and most importantly AFFORDABLE solution: The Multi-Lambda PIR-15.

Key Benefits

The hydraulic ram which operates from standard laboratory air supply (60 - 100 P.S.I) via a food actuated hydraulic converter, has a 15 tonne ram with a 6" stroke, which eliminates the need for pre-tensioning the die.
The PIR-15 is a compact unit, with a very small footprint (120mm radius), which saves on bench space. The clear view, dual sliding windows have been designed to allow easy access.
A precision milled locator holds the inverted pellet and die in position for simplified hands-free pellet removal, and the unit is equipped with an easy to read 15 tonne max. pressure gauge.

Pellet Dies

Replacement Pellet Dies are available for PIR-15 Infra-Red Press.

To contact Elm Scientific about PIR-15 Hydraulic Press Unit use Get a quote.
